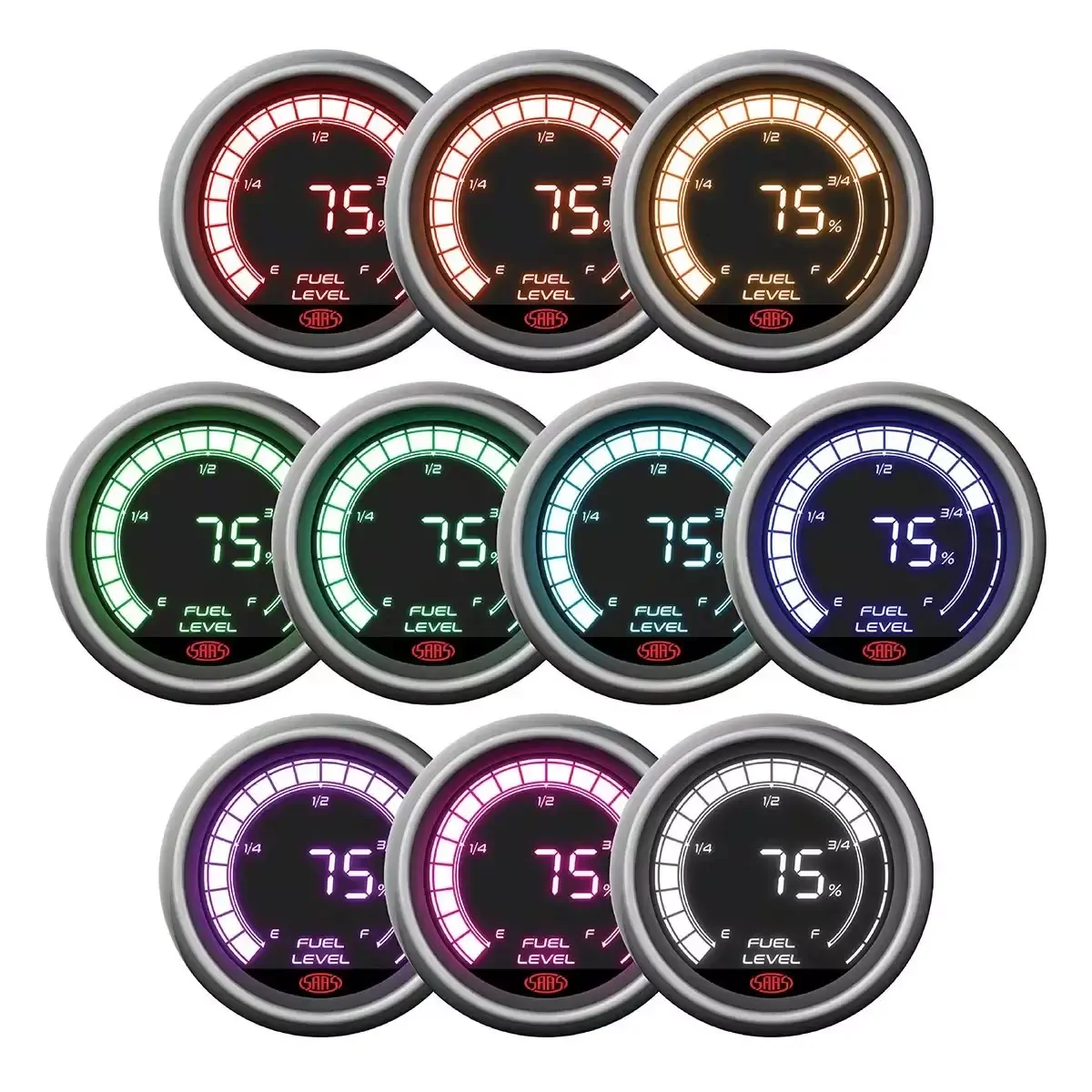

SAAS Muscle Digital specialty gauges give you digital readings with the added advantage of dimmable backlighting.
No moving components allows for a vibration proof environment making these gauges ideal for 4WD offroad and performance applications
| Preset | Manufacturer | Empty | Full |
|---|---|---|---|
| 1 | Ford (pre 1989), Chrysler | 73 | 10 |
| 2 | Ford (1989 on) | 16 | 158 |
| 3 | GM (pre 1965) | 0 | 30 |
| 4 | GM (1965 on) | 0 | 90 |
| 5 | Autometer Sender | 240 | 33 |
| 6 | Mitsubishi, Honda (pre 2001) | 107.5 | 7 |
| 7 | Honda (2001 on) | 131 | 12 |
| 8 | Generic Japanese Sender | 0 | 120 |
| 9 | SAAS Sender (SG31006) | 10 | 180 |
| Series | Muscle Digital |
| Bezel OD | 57mm / 2 1/4" |
| Body OD | 52mm / 2" |
| Range | Variable - see table |
| Lighting | LED Multi-select 10 Colour |
| Type | Digital |
| Bracket Mounting | SG21005 |
| Gauge Link Connector | SG9101 |
| Programming Button | SG4106 |
| Sender Fuel Level | SG31006 |
| Wiring Loom | SG4163 |
| Download | Fitting Instructions |
| SKU | SG41290 |
| Barcode | 9348391025501 |
| Length | 95mm |
| Width | 125mm |
| Height | 150mm |
| Cubic | 0.0018m³ |
| Weight | 0.40kg |
