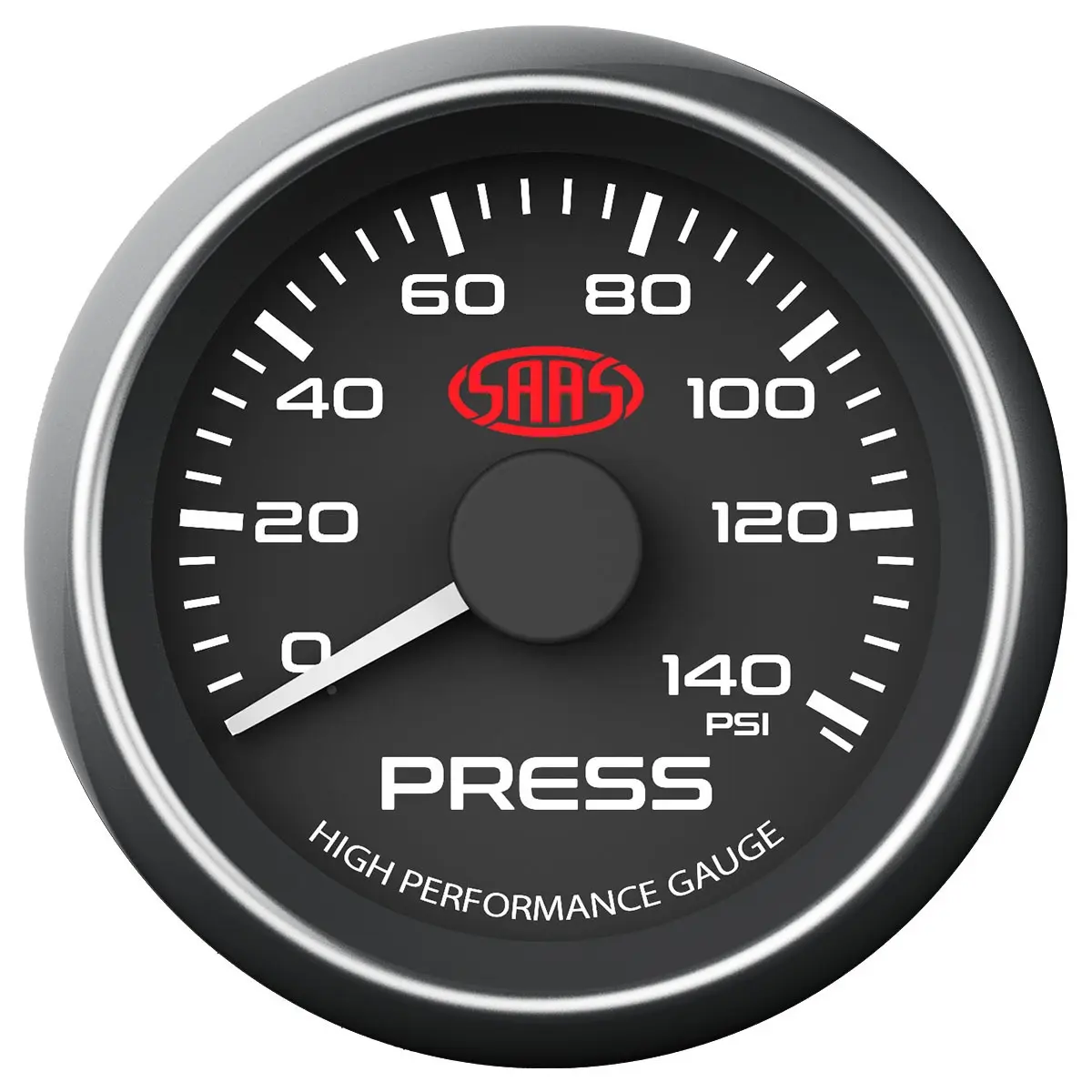

Engine oil pressure is one your engine's most vital signs and monitoring for any variation is critical. Keep an eye on pressure movement and make a interior design statement at the same time with our Muscle series of gauges.
The sender is most commonly piggy backed off the OE oil pressure sender/switch using a brass T-Adaptor. Alternatively, consider using a SAAS oil filter sandwich plate that provides up to 3 sender ports for accessories.
Should the standard sender wire not be long enough, splice in an additional length of wire with a gauge NO GREATER than supplied loom wire. SAAS recommends <= 20AWG wire. Use of a heavier gauge wire or of too greater length will impact resistance and distort temperature readings.
| Series | Muscle Series I |
| Body OD | 52mm / 2" |
| Range | 0-140psi |

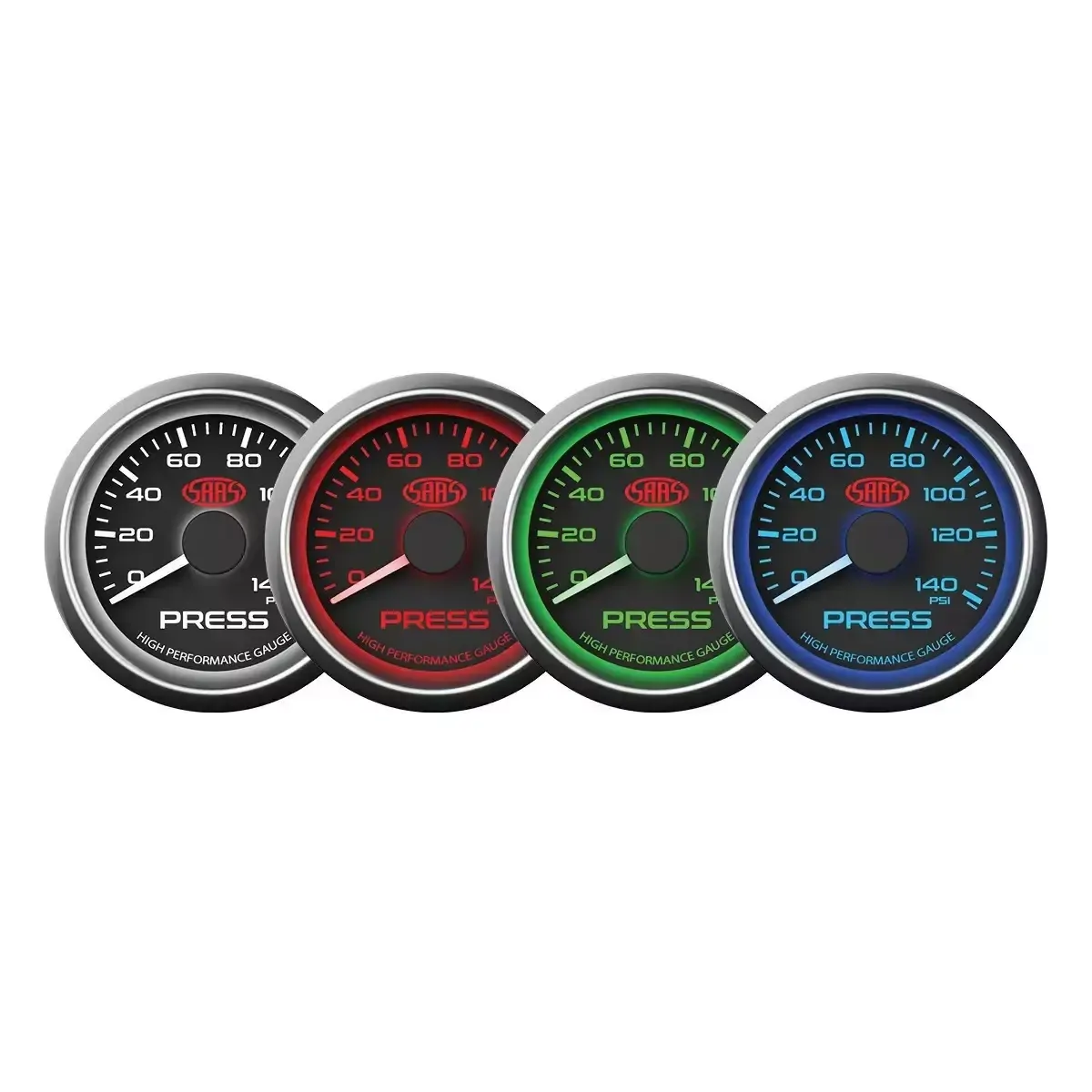

| Lighting | LED Multi-select 4 Colour |
| Type | Electronic |
| Bracket Mounting | SG31005 |
| Sender Oil Pressure | SG31002 |
| Sender Thread | 1/8" NPT |
| Sender Adaptors | List Adaptors |
| Wiring Loom | SG3130 |
| Download | Fitting Instructions |
| SKU | SG-OP52B |
| Barcode | 9348391007767 |
| Length | 150mm |
| Width | 125mm |
| Height | 95mm |
| Cubic | 0.0018m³ |
| Weight | 0.40kg |
