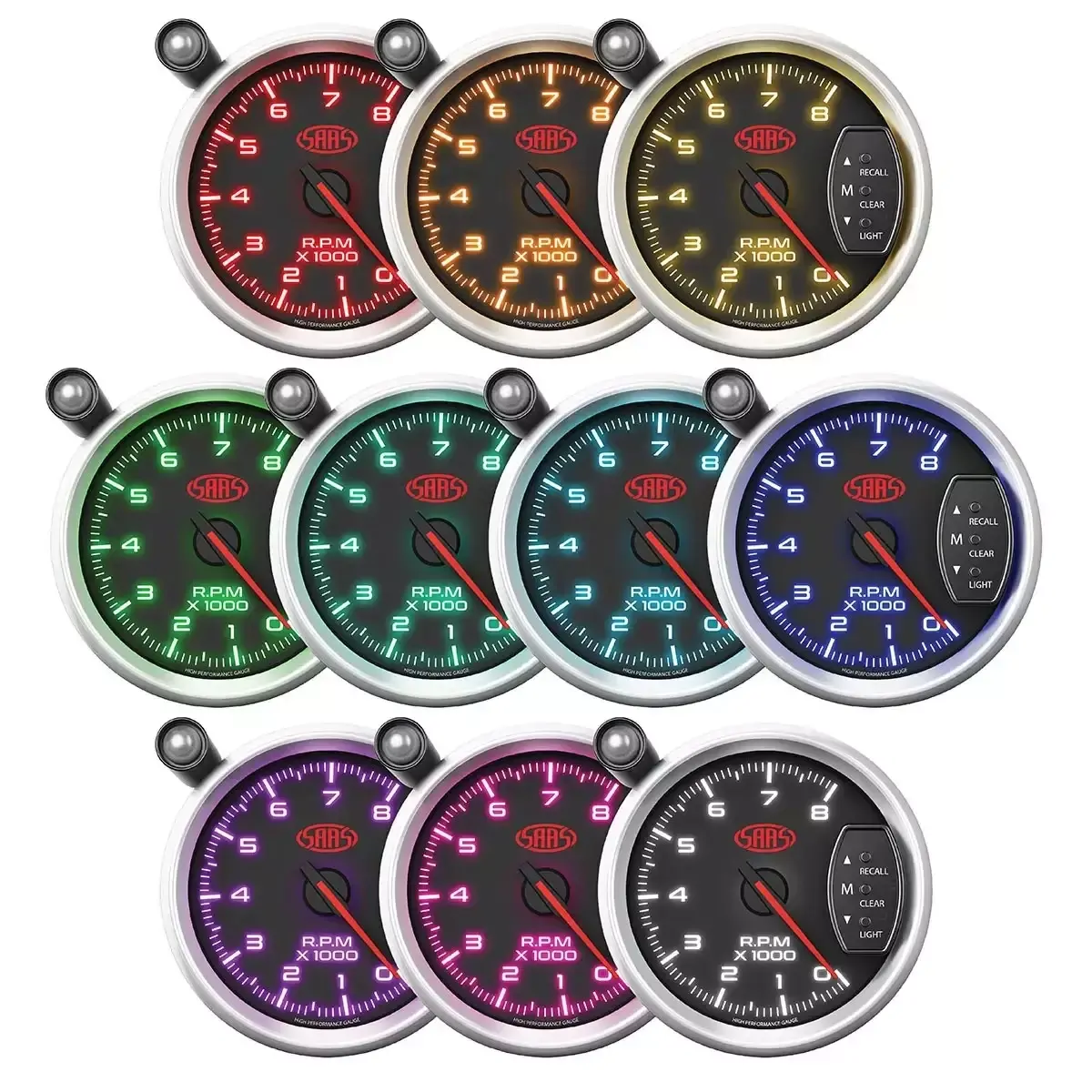

Presenting the latest in SAAS Muscle Series 3 Gauges - our SAAS High Performance Muscle Series 3 Tachometer not only provides a precise RPM reading but the included Shiftlite signals the driver at each pre-selected shift point.
Using the latest in stepper motor technology, this tacho is designed for use in a variety of 4 stroke petrol engine configurations from 1 to 8 cylinders. The tach has also been designed to work with the different ignition setups available today including conventional points, electronic, HEI and multi coil pack systems providing a clean 12v square wave signal. Be aware that in some instances you may still need some signal filtering - please refer to the installation instructions.
| Series | Muscle Series III |
| Bezel OD | 57mm / 2 1/4" |
| Body OD | 95mm / 3 3/4" |
| Engine Type | Petrol Only |
| Range | 0-8000 RPM |
| Lighting | LED Multi-select 10 Colour |
| Type | Electronic |
| Bracket Mounting | SG31019 |
| Shift Light | SG31018 |
| Wiring Loom | SG3165 |
| Download | Fitting Instructions |
| SKU | SG32612 |
| Barcode | 9348391028045 |
| Length | 152mm |
| Width | 152mm |
| Height | 100mm |
| Cubic | 0.0023m³ |
| Weight | 0.50kg |
